FlexStation-IOT
The FlexStation-IOT is powerful ECU test, simulation and reprogramming station with the following features:
- Front-panel mounted MyCANIC-IOT
- The equivalent of a second MyCANIC-IOT embedded in the unit for simulation and testing
- Programmable 24VDC 5A power supply for electrical/EMC testing
- All connections available on back panel in both banana jack and quick-connect
- OBDII J1962 vehicle connector for fast connection of other diagnostic tools
- Temperature-controlled very low noise fan for quiet enviroment testing (e.g. audio)
- Rugged and compact full metal frame with carry handle for easy portability
$4295.00 USD each

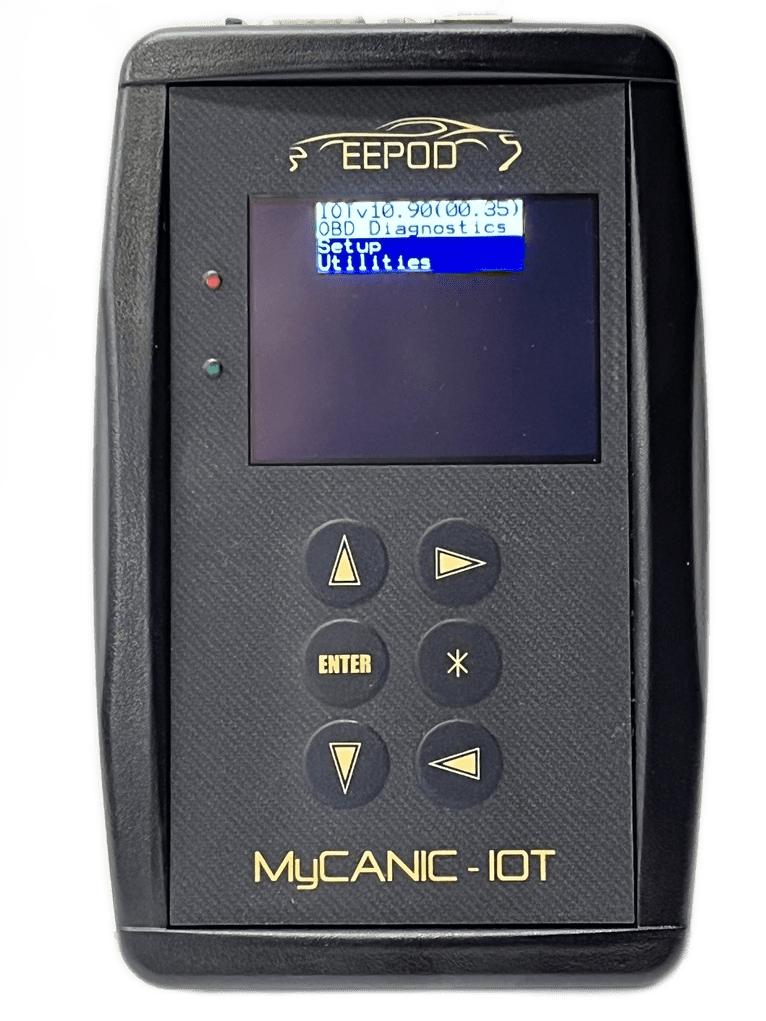

MyCANIC-IOT Vehicle Interface
The MyCANIC-IOT is the latest version of our flagship MyCANIC series product. In addition to the features of our popular MyCANIC-FD vehicle interface, it adds a high-resolution color display, wireless internet access and cloud-based server capabilities to our product line. It can be used in both standalone and pass-thru (J2534) applications for vehicle diagnostics, reprogramming, simulation and data acquisition. In standalone mode, it is the fastest CAN/CAN-FD vehicle ECU reprogramming device in the world. It features two independent CAN-FD networks, one ISO9141 K-line interface, 4-wire Ethernet interface, two analog inputs, one analog output, SD-Card slot, wireless Ethernet interface and a high-speed USB interface for PC-based applications. The unit comes with a heavy duty rubber boot, OBDII cable, USB cable and canvas carrying bag. Software
$995.00 USD each

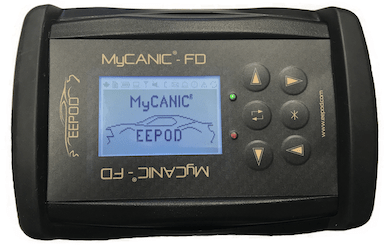

MyCANIC-FD Vehicle Interface
The MyCANIC-FD is the previous version of our flagship MyCANIC series product. It can be used in both standalone and pass-thru (J2534) applications for vehicle diagnostics, reprogramming, simulation and data acquisition. In standalone mode, it is the fastest CAN/CAN-FD vehicle ECU reprogramming device in the world. It features two independent CAN-FD networks, one ISO9141 K-line interface, one Ethernet interface, two analog inputs, one analog output, SD-Card slot and a high-speed USB interface for PC-based applications. The unit comes with a heavy duty rubber boot, OBDII cable, USB cable and canvas carrying bag. Software
Discontinued

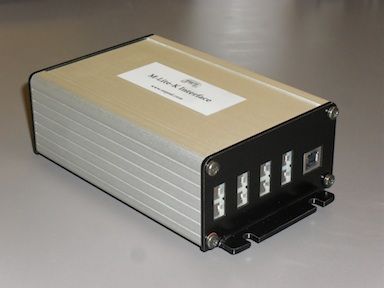

MLite-K CAN Data Acquistion Interface
The MLite-K features dual independent CAN interfaces with four K-Thermocouple channels (0-1000 deg. C range), four analog inputs and fifteen digital inputs.
$595.00 USD each
.jpg)
CGM CAN Gateway Module
The CGM module is a small multi-purpose ECU with dual CAN/CAN-FD channels and two analog / digital I/O. It can be used as a secure gateway to another CAN/FD network or operate as a simple ECU with the analog / digital I/O. Call for pricing.

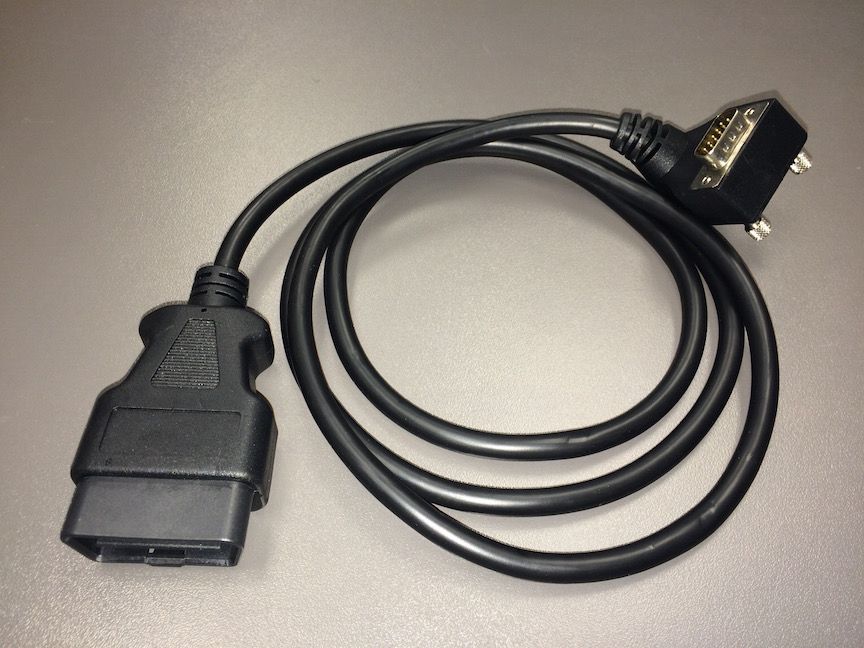

OBDII-3HD Cable
Heavy duty J1962 OBDII cable for MyCANIC / MyCANIC-FD. 6 foot length.
$60.00 USD each
OBDII-3HD Cable
Heavy duty J1962 OBDII cable for MyCANIC / MyCANIC-FD. 6 foot length.
$60.00 USD each

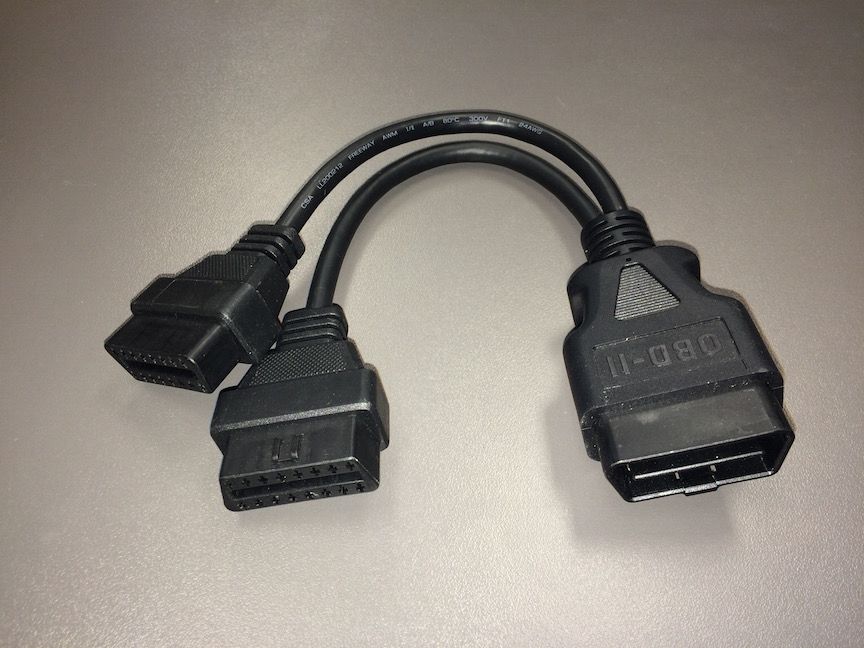

OBDII Y-Cable
OBDII Y-Cable. One foot length.
$40.00 USD each
